Paper Cup Machines
• PLC intelligent control, more accurate, easier operation and the labor is greatly reduced
• Multiple cooling fans for heat dissipation ensuring that the machine keep suitable temperature when working.
• Automatic oil lubrication, no need worker spraying oil manually which greatly saves labor.
• Servo driver
• PLC control
Full Servo High Speed 140-170 Pcs / Disposable Coffee Paper Cup Making Forming Machine Price Paper Cups
This paper cup machine is the new advanced version. It is very different from the traditional paper cup machine, and many places have been changed accordingly. The machine is powerful and can meet various production needs. First of all, the machine does not need lubricating oil in the process of using. It adopts crankshaft control and servo motor, which is more advanced and also solves the problem of wear and tear during the high speed operation of the machine. The service life of the machine is extended. The servo indexing mechanism is lubrication-free, maintenance-free and easy to install. When replacing the machine, it is fully automatic, high performance and high quality even if the machine is running under harsh operating conditions.
Technical parameter of the paper cup machine
| Type | Disposable Coffee Paper Cup Making Forming Machine Price Paper Cups |
| Cup size: | 4-16 oz (other customized size) |
| Cup material | 170-380 gsm single or double PE/PLA/ coated paper aluminum foil paper (0.25-0.5 mm) |
| Production capacity | 130-170 pcs/min |
| Power source: | 380V 3- phase 50HZ 34kw Running consumption is 14kw (please inform us your power in advance) |
| Air Supply | 0.6 Mpa,(running consumption 0.4Nm3/min) |
| Dimension | 2.46*1.62*1.78 m, |
| Weight | 3000KG |
| H.S code for customs | 8441309000 |

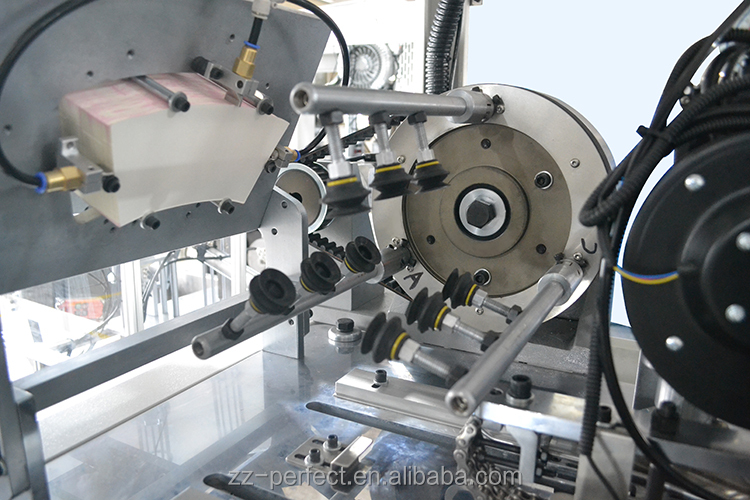

high speed new top one time paper tea cup making forming machine in pakistan adopts the most advanced blank shuttle & rotary placer mechanism, replaced traditional up and down movement suction feeding way to avoid paper move problem. Rotary placer mechanism pick and put paper more stable, which ensure the paper feeding to cup body sealing part more smoothly and steady.
FAQ Of Paper Cup Machine
Q1: Are you a factory or a trading company?
A: We have our own factory and export team, we invite you to visit our factory, we can pick you up from the airport.
Q2: Do you have relevant certificates?
A: Yes, so far, we have CE, ISO, etc. CO, Form E, etc. if you want.
Q3: What are the accepted payment terms?
A: TT (Wire Transfer), Western Union, MoneyGram, LC, etc.
Q4: Will you check after the machine is finished?
A: Of course, we will test each machine and provide test video before packing.
Q5: How about the warranty and after-sales service?
A: Our machines provide one year warranty and lifetime technical support. Need help is always just a phone call or an email to us, then we can provide the right solution within 8 hours of analyzing and estimating the problem. Distance learning and home services are also available.
Q6 How good is your factory in quality control?
A: The quality of all the products we produce comes first. Our factory has always attached great importance to quality control.
(A generation). Skilled workers pay attention to every detail in the production and packaging process.
(B) The quality inspection department conducts quality inspection on each link.
