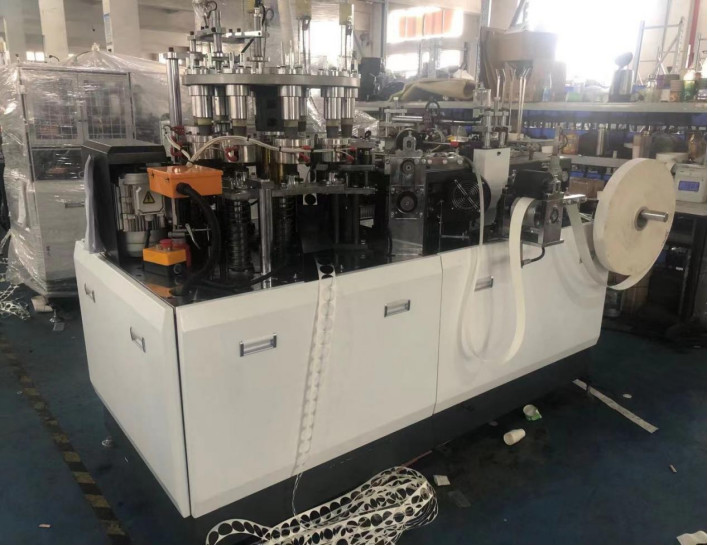

100 pcs/min fully automatic PE Coated paper tea coffee paper cup making machines
100 pcs/min fully automatic PE Coated paper tea coffee paper cup making machines is a fully automatic paper cup forming machine, which can produce different sizes of paper cups with a series of continuous process, including automatic paper feeding through more than 2 times, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by magic hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre-heating, bottom knurling, cup discharging. The machine, researched and developed by our company, is improved in stability after comprehensive technical improvements.
Advantages
- Sensor Alarming
- Whole machine is box type structures design, filling oil by spray lubrication system So that it can run fast and stably
- Fan for heat dissipation.
- 10 station turntable
- Multi pass preheating furnace
Technical Parameters
| Model | PFD-12 High speed paper cup machine |

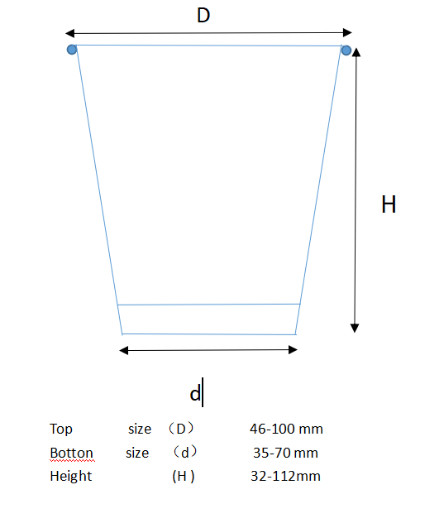

| Paper cups specification | 3-12 OZ T:46-100mm H:32-112mm B:35-70mm |
| Air supply requirement | 0.3-0.5MPa,0.4cbm/min |
| Paper specification | 150-350 GSM single/double PE coated paper |
| Production capacity | 85-100 pcs/min |
| Voltage | 220V/380V |
| Total Power | 4.8KW |
| Total Weight | 1800KG |
| Dimensions | 2100*1160*1750mm |
Production line for paper cup:
Company Information
Zhengzhou Perfect Co., Ltd. specialize in producing paper cup machine, high cup machine, paper bowl machine, paper box machine, dining box machine and other paper packaging equipments. Our company integrates research and development, production, sales and maintenance, constantly introducing new and high technology, focusing on after-sales service.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
FAQ
Q1: Delivery of Automatic Disposable Pe Coated Coffee Paper Cup Machine?
A: Within 35 days after payment confirmed.
Q2 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q3: Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q4: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem.
|
|
100 pcs/min fully automatic PE Coated paper tea coffee paper cup making machines Images
|
